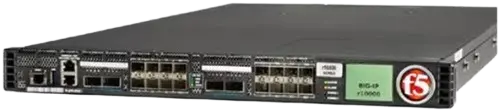

F5-BIG-AWF-R10800 Advanced Web Application Firewall
- RAID1 dual SSDs and dual hot-swappable PSUs ensure nonstop performance, eliminating single points of failure.
- Up to 115K SSL TPS for industry-leading HTTPS visibility and threat detection on critical workloads.
- Up to 125Gbps L7 throughput, enabling real-time advanced WAF policy execution at wire speed.
- 4×100G + 16×25G ports, ideal as a central security gateway in modern data centers.
- Key Features
- Specification
- FAQ
F5 BIG-IP AWF-R10800: For Flagship Enterprises Requiring Advanced Security and Processing Power
As the performance-enhanced evolution of the F5 BIG-IP AWF-R10600, the AWF-R10800 shares the same high-availability hardware foundation but offers a 30% boost in SSL capacity (150K vs. 115K TPS) and more processing power (28 vs. 24 vCPUs). It’s built to defend larger application clusters, handle heavier encrypted traffic, and execute deeper inspection policies—ideal for cloud service providers, financial institutions, and global enterprises.
F5 BIG-IP AWF-R10800 Features
Carrier-Grade Hardware Redundancy
Built-in dual SSDs (RAID 1) and redundant power supplies ensure 24/7 operation, even during hardware failure. It’s engineered to deliver uninterrupted protection for mission-critical traffic.
Flagship SSL Decryption & Inspection
With 150,000 SSL transactions per second, the R10800 excels at decrypting and analyzing encrypted traffic at scale—critical for industries where data sensitivity and compliance are paramount.
High-Speed App-Layer Threat Prevention
Delivers 145Gbps of Layer 7 security throughput—enabling real-time, low-latency enforcement of comprehensive security policies including OWASP protections, DLP, and behavioral analysis.
Powerful Multi-Core Architecture
With 28 dedicated vCPUs, the R10800 enables ultra-efficient parallel processing. It’s built to support large numbers of vCMP instances and CPU-intensive security strategies without performance compromise.
F5 BIG-IP AWF-R10800 Datasheet
- L7 Threat Inspection Throughput: 145 Gbps
- SSL TPS (2K Keys): 150,000
- L7 Requests Per Second: 5.5M
- Memory: 256 GB DDR4
- Tenancy vCPUs: 28 Cores
- Primary Ports: 4x 100G/40G QSFP+, 16x 25G/10G SFP+
Traffic Processing and Acceleration
Intelligent Traffic Processing:
- L7 requests per second: 5.5M
- L4 connections per second: 2.1M
- L4 HTTP requests per second: 36M Maximum
- L4 concurrent connections: 160M
- Throughput: 190 Gbps/145 Gbps L4/L7
Hardware Offload SSL/TLS:
- 150K TPS (2K SSL TPS)
- 110K TPS (ECDHE-ECDSA P-256 TPS)
- 110K TPS (ECDHE P-256-RSA 2k TPS)
- 80 Gbps bulk encryption
System Architecture & Logical Design
- Hardware Compression: 80 Gbps
- Software Architecture: 64-bit TMOS; 64-bit F5OS
- Multi-Tenancy: 28 Tenant
- Processor: 12 vCPU reserved for F5OS, (28 cCPU’s available for Tenancy)
- Memory: 256GB DDR
- Hard Drive: 2* 1TB U.2 Enterprise-class SSD
Network Interfaces & Connectivity
- Management Ports:
- 1x 1000BASE-T,
- 1x USB 3.0,
- 1x serial console
- 100/40 Gigabit Fiber Ports: 4× 100 G/40 G QSFP+/QSFP28 ports
- 25/10 Gigabit Fiber Ports: 16 × 25 G/10 G/10 G SFP+/SFP28
Power Supply & Energy Consumption Management
Power Supply:
- 1 x 1200 W 100-240 VAC (+/- 10%) AUTO Switching Platinum,
- Dual DC PSU Optional
Typical Consumption: 680W (dual power supply, 48V DC or 110V AC input)
Input Voltage / Typical Heat generated:
- Single Power supply
- 110 VAC input: 2325 BTU/hour
- 230 VAC input: 2290 BTU/hour
Physical Specifications & Environmental Adaptation
Dimensions: H: 1.72 inches (4.37 cm) x W: 17.1 inches (44.2cm) x D: 30.6 inches (77.72 cm). 1U industry standard rack-mount chassis
Weight: 36.0 pounds (916.33kg) with two power supply units (PSUs) (per unit)
Operating Temperature: 32 to 104°F (0 to 40°C)
Operational Relative Humidity: 5% to 85% (40 C) non-condensing
Safety Certification & Compliance
Hardware Certification Model: r2000
Safety Agency Approval:
- ANSI/UL 60950-1-2014
- CSA 60950-1-07, including A1:2011+A2:2014 IEC 60950-1:2005,
- A1:2009+A2:2013
- EN 60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2013
- IEC 62368-1:2014 (Second Edition) EN 62368-1:2014+A11:2017
- CSA C22.2 No. 62368-1-14, UL 62368-1, 2nd edition
Certifications / Susceptibility Standards:
- FCC Class A (Part 15), lc Class A;
- VcCl Class AEN 55032:2012/AC:2013 Class A
- EN 55035:2017
- EN 300 386 V1.6.1 (2012)
- NEBS Level 3 compllant
Q1: What is the main difference between the AWF-R10600 and the AWF-R10800?
A1: Same chassis, same redundancy, but the R10800 license adds 30% more SSL horsepower—150 K TPS versus 115 K—and bumps vCPUs from 24 to 28. Pick it when you need to decrypt heavier encrypted loads or run more demanding policy stacks.
Q2: Does the F5-BIG-AWF-R10800 have any physical differences from the AWF-R10600?
A2: None. The hardware is identical—same RAID1 SSDs, same dual PSUs, same port layout. The R10800 simply unlocks extra performance through licensing.
Q3: What kind of security policies benefit most from the 28 vCPUs?
A3: Anything CPU-heavy—ML-driven bot defense, deep JSON/XML API inspection, or spinning up lots of vCMP guest WAFs in multi-tenant clouds.
Q4: Is the AWF-R10800 the best WAF F5 offers?
A4: It’s the sweet spot in the flagship line. If you need absolute max performance, step up to the AWF-R10900, which pushes SSL TPS and vCPUs even higher for the planet’s busiest networks.
