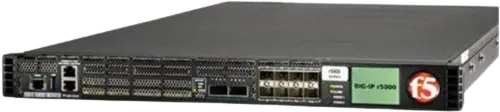

F5-BIG-BT-R5800 Best Bundle
- Fully enhanced to easily run multiple high-load core services simultaneously.
- 80K SSL TPS and 40Gbps hardware compression tackle demanding security workloads.
- 128GB memory and 18-tenant support: ideal for large-scale service integration.
- Standard 100G/40G ports handle massive integrated traffic without bottlenecks.
- Key Features
- Specification
- FAQ
F5-BIG-BT-R5800: For Large Enterprises Needing to Run Multiple High-load Services Concurrently
The F5-BIG-BT-R5800 is the high-performance solution within the R5000 “Best Bundle” lineup. Compared to F5-BIG-BT-R5600, it offers a significant leap in licensed hardware capabilities—33% more SSL TPS, 50% more business vCPUs (18 vs. 12), and over 2x the tenant capacity (18 vs. 8). These core upgrades make the R5800 ideal for enterprises, service providers, and financial institutions looking to consolidate high-load services onto a single, powerful platform.
F5-BIG-BT-R5800 Key Features
High-Performance Service Integration Platform
Boasting 95Gbps throughput and 18 vCPUs, it delivers exceptional performance even with all Best Bundle modules (LTM, AWF, AFM, APM) active. It ensures stable, high-efficiency operation for load balancing, web security, and access control under extreme traffic.
Advanced Concurrent Security Processing
With 80K SSL TPS and a dedicated 40Gbps hardware compression engine, it offloads encryption and compression tasks from the CPU. This allows full processing power to focus on threat detection (AWF) and secure user access (APM), ensuring top-tier security and performance—without compromise.
Ultra-Dense IT Resource Consolidation
With 18 business vCPUs and 18-tenant support, it stands as a premier consolidation platform. It lets you replace multiple high-performance legacy appliances with one unit—enhancing performance while slashing data center costs and complexity.
Core Network-Ready 100G Interfaces
With two built-in 100G/40G QSFP+ ports, the R5800 is ready for backbone connectivity. As traffic increases due to service consolidation, these ports ensure that your “all-in-one gateway” will not become a throughput bottleneck—keeping your network future-ready and investment protected.
F5-BIG-BT-R5800 Datasheet
- L4/L7 Throughput: 95 Gbps / 85 Gbps
- Max L4 Concurrent Connections: 85M
- SSL TPS (2K Keys): 80,000
- Memory: 128 GB DDR4
- Primary Ports: 2x 100G/40G QSFP+, 8x 25G/10G SFP+
- Hardware Redundancy: Optional Dual PSU, Single Drive
Traffic Processing and Acceleration
Intelligent Traffic Processing:
- L7 requests per second: 3.3M
- L4 connections per second: 1.4M
- L4 HTTP requests per second: 18M Maximum
- L4 concurrent connections: 85M
- Throughput: 95 Gbps/85 Gbps L4/L7
Hardware Offload SSL/TLS:
- 80K TPS (2K SSL TPS)
- 50K TPS (ECDHE-ECDSA P-256 TPS)
- 50K TPS (ECDHE P-256-RSA 2k TPS)
- 45 Gbps bulk encryption
System Architecture & Logical Design
- Hardware Compression: 40 Gbps
- Software Architecture: 64-bit TMOS; 64-bit F5OS
- Multi-Tenancy: 18 Tenant
- Processor: 6vCPU reserved for F5OS, (18 cCPU’s available for Tenancy)
- Memory: 128GB DDR
- Hard Drive: 1TB M.2 SSD
Network Interfaces & Connectivity
- Management Ports:
- 1x 1000BASE-T,
- 1x USB 3.0,
- 1x serial console
- 100/40 Gigabit Fiber Ports: 2× 100 G/40 G QSFP+/QSFP28 ports
- 25/10 Gigabit Fiber Ports: 8 × 25 G/10 G/10 G SFP+/SFP28
Power Supply & Energy Consumption Management
Power Supply:
- 1 x 650 W 100-240 VAC (+/- 10%) AUTO Switching Platinum,
- Dual DC PSU Optional
Typical Consumption: 425W (single power supply, 48V DC or 110V AC input)
Input Voltage / Typical Heat generated:
- Single Power supply
- 110 VAC input: 1455 BTU/hour
- 230 VAC input: 1420 BTU/hour
Physical Specifications & Environmental Adaptation
Dimensions: H: 1.72 inches (4.37 cm) x W: 17.1 inches (44.2cm) x D: 30.6 inches (77.72 cm). 1U industry standard rack-mount chassis
Weight: 36.0 pounds (916.33kg) with two power supply units (PSUs) (per unit)
Operating Temperature: 32 to 104°F (0 to 40°C)
Operational Relative Humidity: 5% to 85% (40 C) non-condensing
Safety Certification & Compliance
Hardware Certification Model: r2000
Safety Agency Approval:
- ANSI/UL 60950-1-2014
- CSA 60950-1-07, including A1:2011+A2:2014 IEC 60950-1:2005,
- A1:2009+A2:2013
- EN 60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2013
- IEC 62368-1:2014 (Second Edition) EN 62368-1:2014+A11:2017
- CSA C22.2 No. 62368-1-14, UL 62368-1, 2nd edition
Certifications / Susceptibility Standards:
- FCC Class A (Part 15), lc Class A;
- VcCl Class AEN 55032:2012/AC:2013 Class A
- EN 55035:2017
- EN 300 386 V1.6.1 (2012)
- NEBS Level 3 compllant
- EN 300 386 V2.1.1 (2016-07)
Can the F5-BIG-BT-R5800 truly handle a large enterprise’s consolidated needs?
Absolutely—that’s its core strength. With 95G throughput, 80K SSL TPS, and 18 vCPUs, it simultaneously serves as high-traffic load balancer (LTM), web firewall (AWF), and secure access gateway (APM).
With so many services running, how does the R5800 ensure performance?
Its 18-core architecture and dedicated hardware accelerators. Features like 40Gbps hardware compression offload CPUs, freeing them for security policies and traffic management—keeping all modules performing stably.
Is the BT-R5800 a good platform for creating a managed service offering?
Yes, excellent. With support for up to 18 tenants, MSPs can offer isolated, dedicated ADC and security services to multiple customers on one powerful, cost-effective platform.
